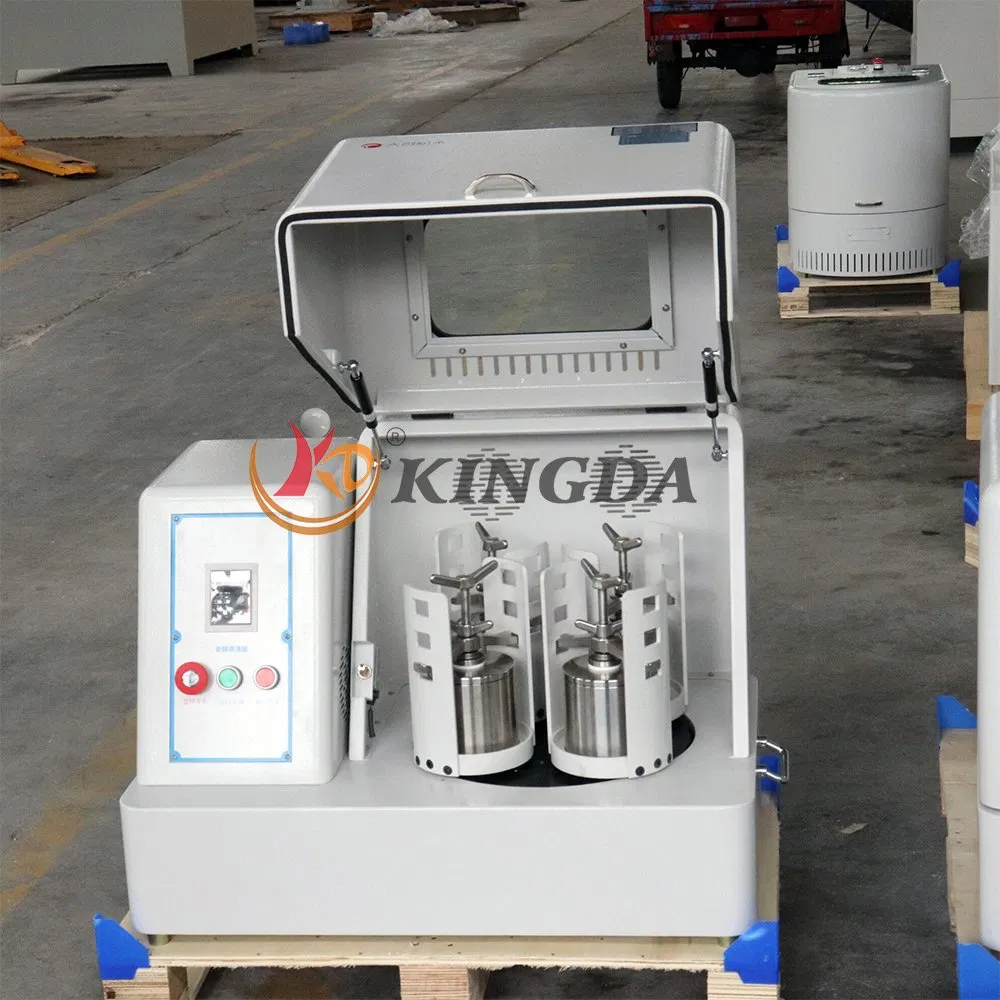

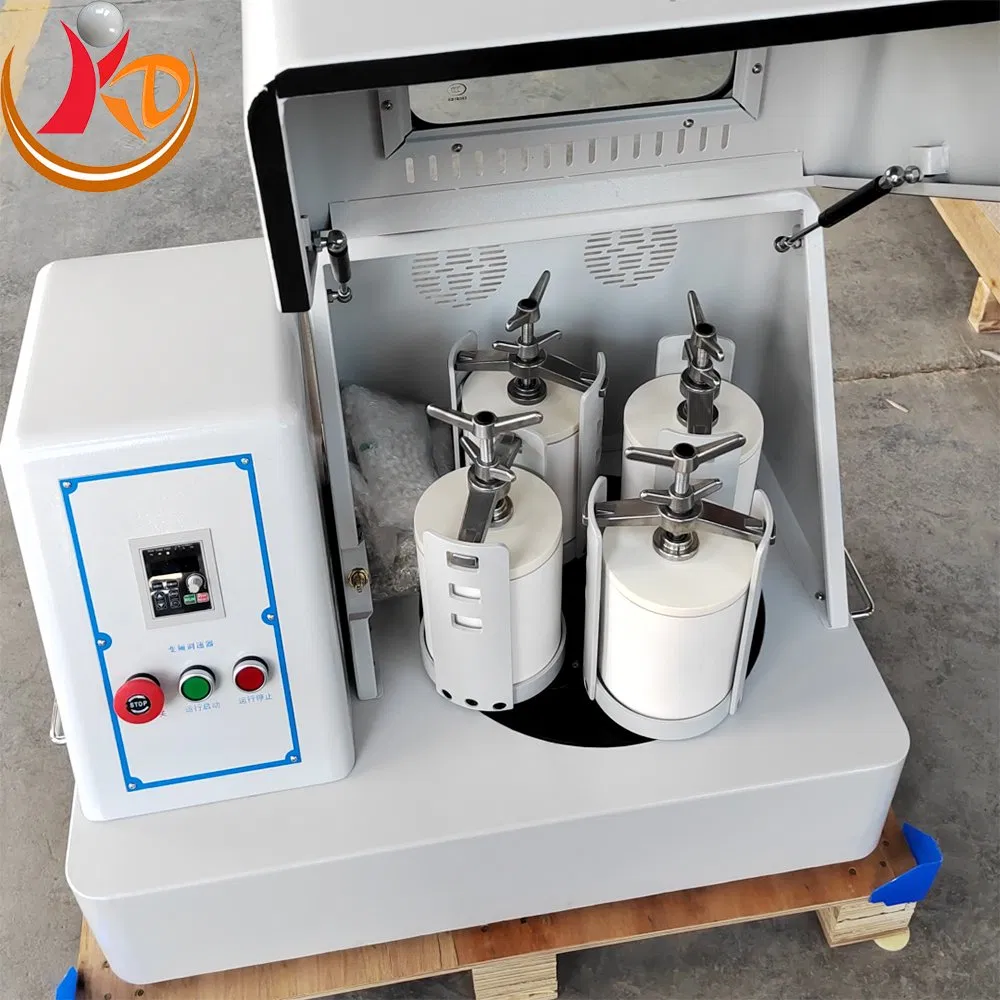

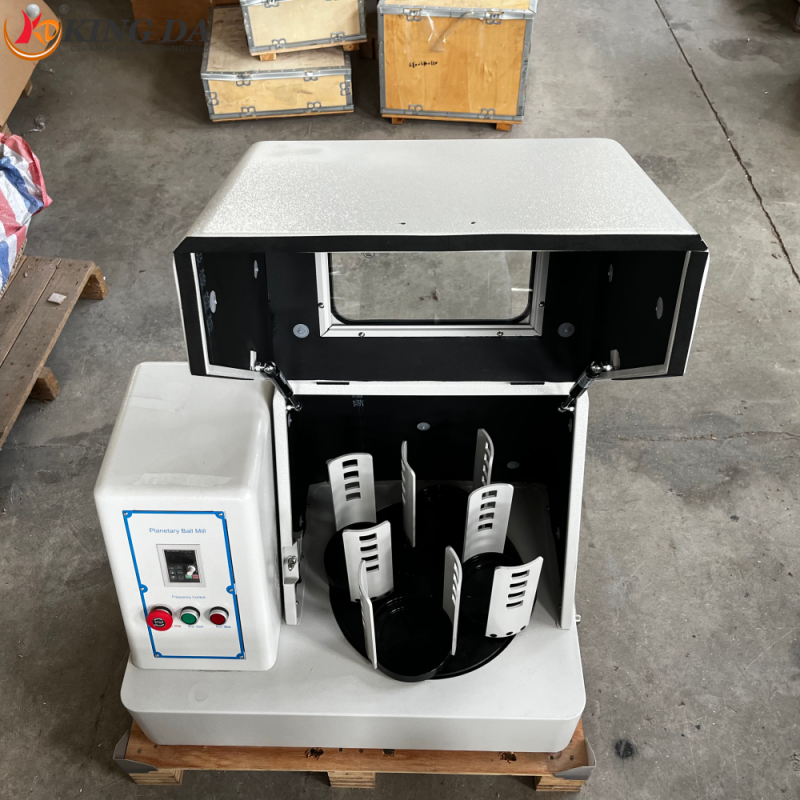

Compact Vertical Planetary Ball Mill for Scientific Research and Small Batch Production
A high-tech laboratory device for materials mixing, fine grinding, sample preparation, and small batch production. Ideal for R&D institutions, universities, and enterprise laboratories.

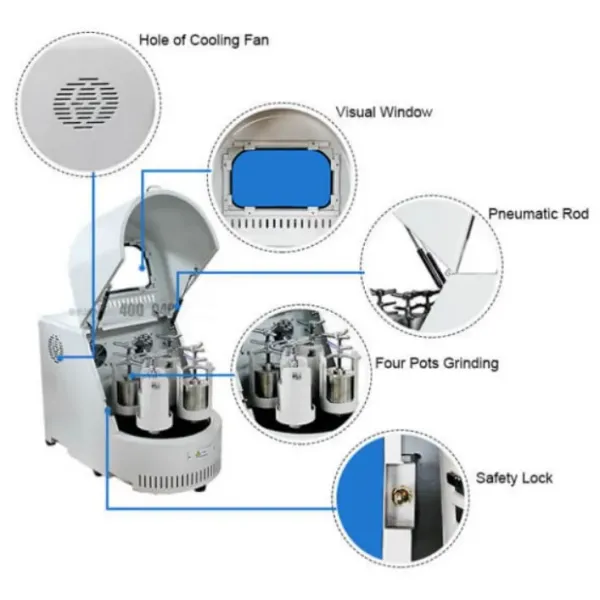

Key Features

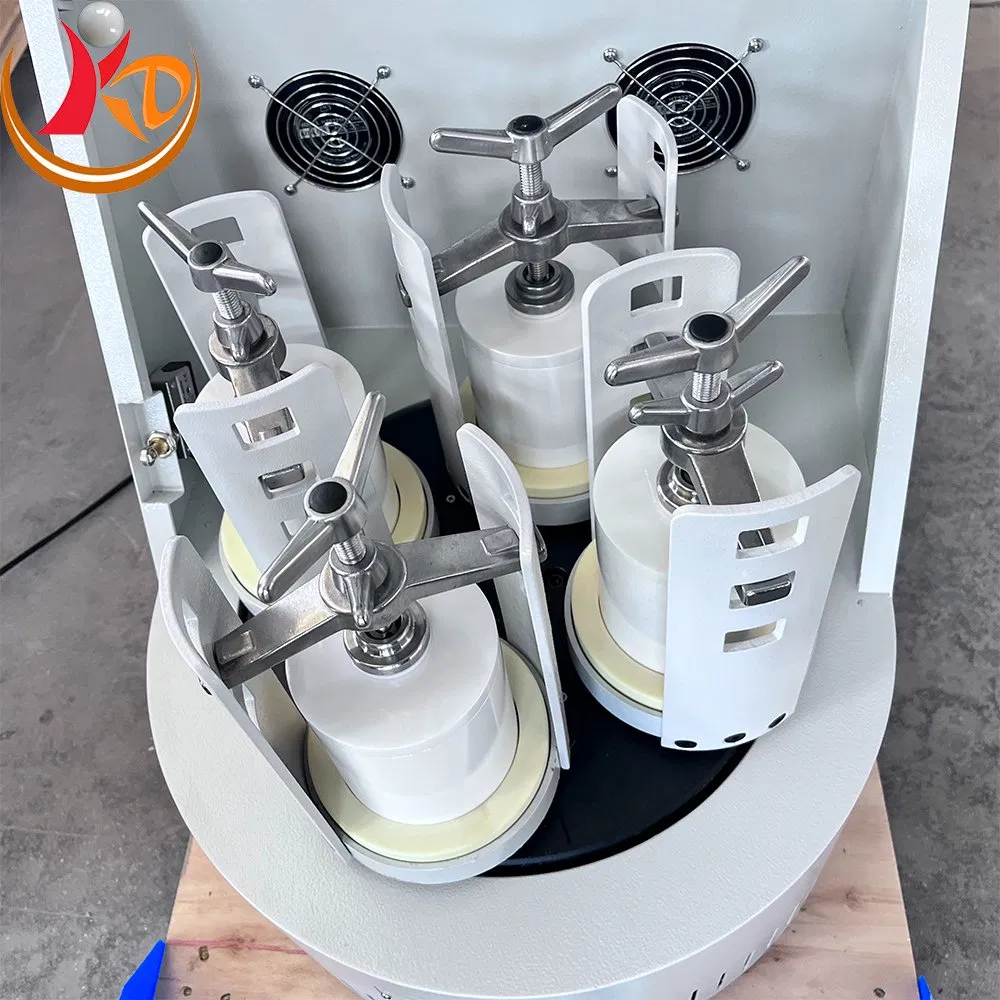

- Four simultaneous sample processing capability

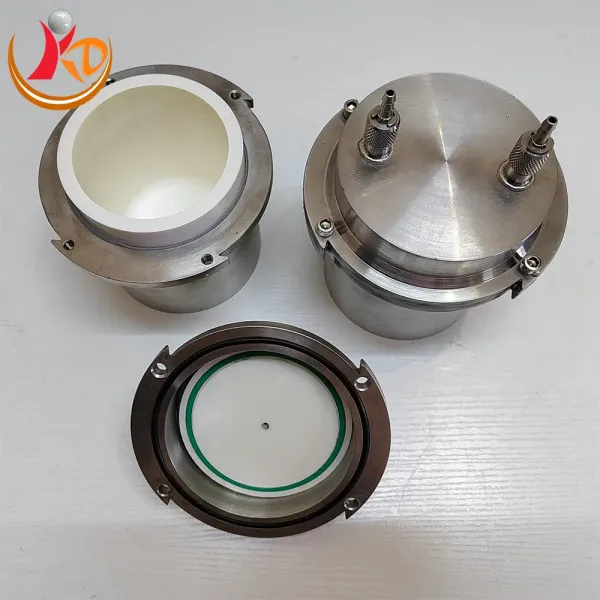

- Vacuum-compatible for contamination-free grinding
- Variable speed control with frequency converter
- Precision gear transmission for consistent results
- Safety switches and protective covers
- Compact design with low noise operation
Technical Specifications
| Model |
Planetary Ball Mill |
| Application |
Laboratory |
| Material |
Steel |
| Weight |
55kg |
| Power Supply |
110V-60Hz or 220-50Hz 0.32kw |
| Rotation Speed |
90-870 RPM |
| Working Positions |
4 |
| Feed Size |
<10mm |
| Output Size |
45-535 Mesh (minimum 0.1μm) |
| Warranty |
1 Year |
Model Variations
| Model |
Specification |
Capacity |
Mill Tanks |
| XQM-0.4L |
0.4L |
50-100ml |
4 |
| XQM-1L |
1L |
50-250ml |
4 |
| XQM-2L |
2L |
50-500ml |
4 |
| XQM-4L |
4L |
50-1000ml |
4 |
| XQM-8L |
8L |
0.5-2L |
4 |
| XQM-12L |
12L |
1-3L |
4 |
| XQM-16L |
16L |
1-4L |
4 |
Applications
This planetary ball mill is widely used in multiple industries including:
- Geology and Mining
- Metallurgy and Electronics
- Construction Materials and Ceramics
- Chemical Engineering and Light Industry
- Medicine and Environmental Protection
- Food and Cosmetic industries
Packaging & Shipping
Standard packaging includes carton or plywood case with protective foam. Delivery typically within 15 working days from payment receipt.
Frequently Asked Questions
What is your minimum model size?
The XQM-0.4A model (53×30×34cm, 26kg) is our smallest laboratory unit, with options ranging up to 100L capacity.
What are your payment terms?
We accept 30% deposit with 70% balance against B/L copy, or 100% L/C at sight. Sample orders available with courier costs covered by customer.
What is your production lead time?
Standard delivery is 5-30 days after advance payment, depending on model and quantity ordered.
Our Service Commitment
- Custom grinding ball configurations available
- Comprehensive pre-shipment testing
- 12-hour response time for technical inquiries
- 1-year warranty with video technical support
- Free spare parts and field installation support
Manufactured by HUNAN JINGSHENGDA CERAMIC TECHNOLOGY CO.,LTD - Trusted by leading universities and research institutions worldwide.
